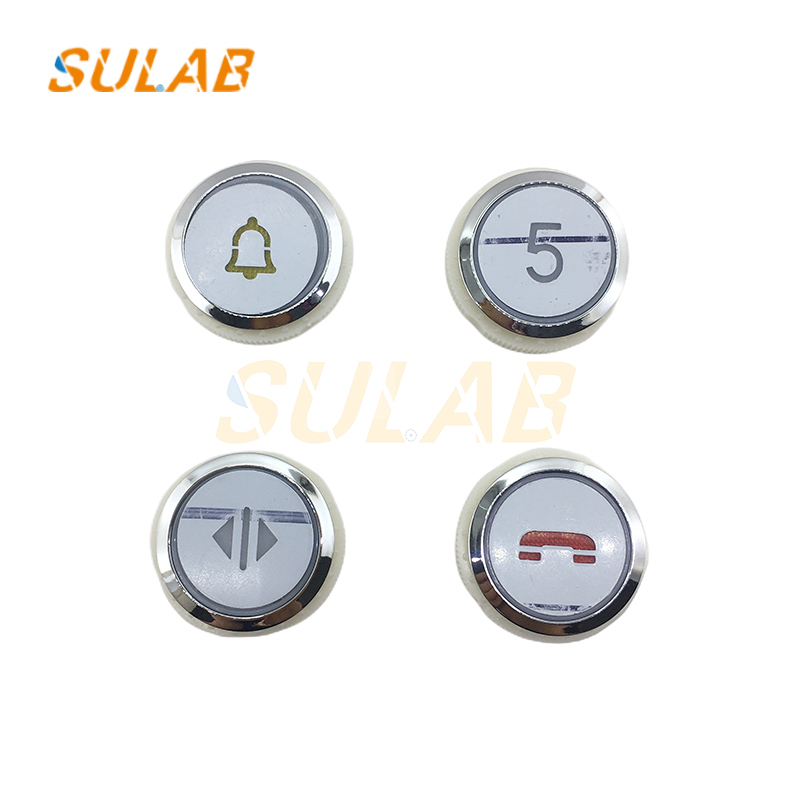

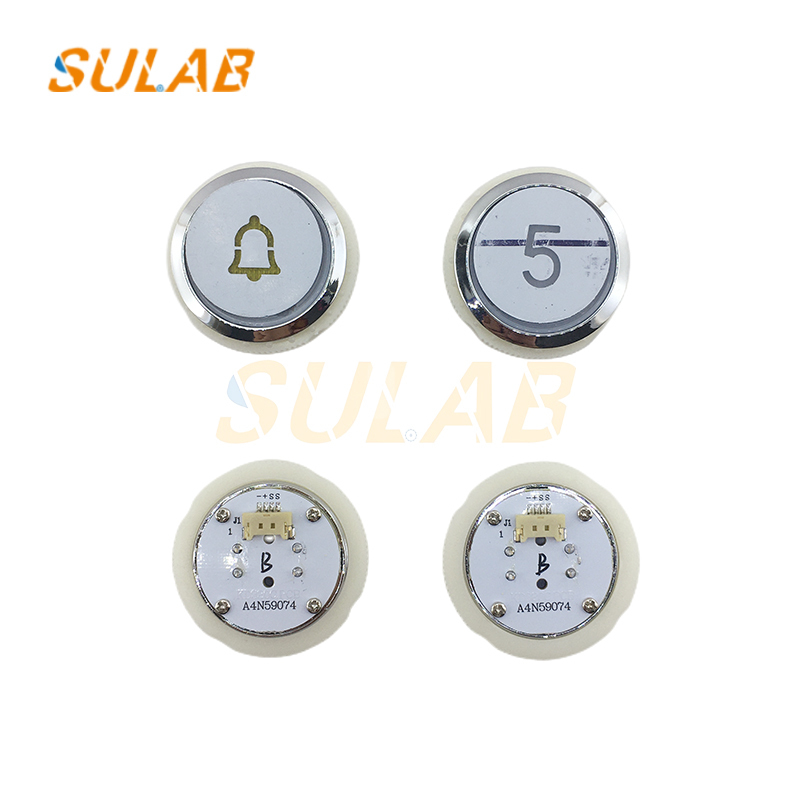

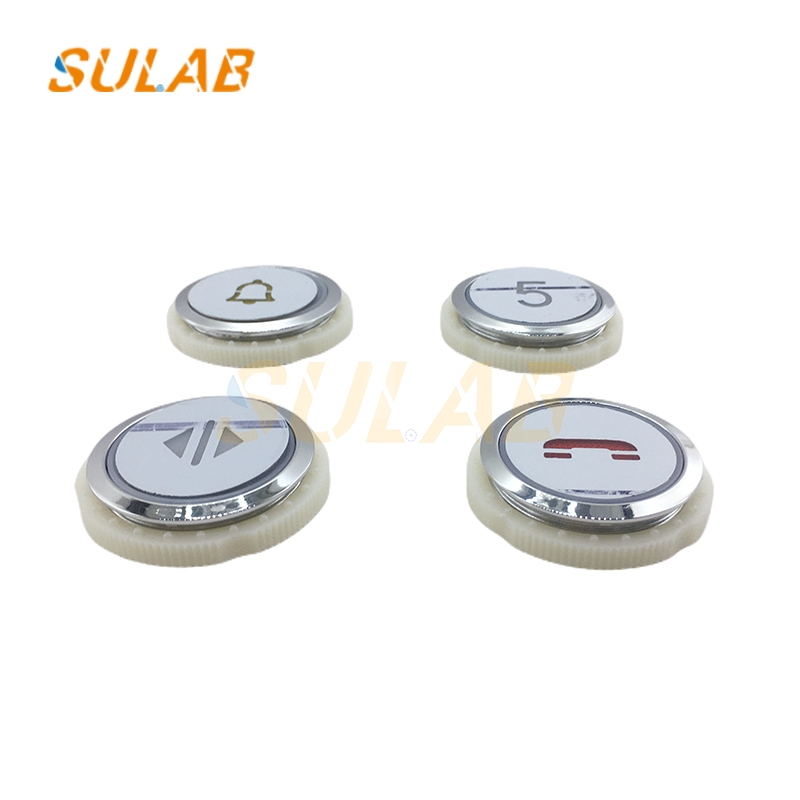

SULAB Elevator Button 30mm Stainless Steel Round Lift Button A4N59074
-
Выделить
stainless steel elevator button
,round lift button accessories
,elevator spare parts A4N59074
-
БрендСулаб
-
ОписаниеЛифт
-
МодельA4N59074
-
Могил1 шт
-
ТранспортTNT, UPS, DHL, FedEx, Air, Sea
-
ПрименимыйЛифт
-
ПакетыКартон, деревянный корпус, поддон и т. Д.
-
Время доставкиОбычно через 2-3 рабочих дня после оплаты
-
ГарантияОдин год
-
Способ оплатыБанк компании, Western Union, Alibaba, Paypal и т. Д.
-
Фирменное наименованиеSULAB
-
Номер моделиA4N59074
-
Количество мин заказа1 шт
-
Время доставкиОбычно через 2-3 рабочих дня после оплаты
-
Условия оплатыL/C, D/A, D/P, T/T, Western Union, Moneygram
SULAB Elevator Button 30mm Stainless Steel Round Lift Button A4N59074
BST Elevator Button Elevator Spare Parts Button Round Lift Button Elevator Accessories Stainless Steel Material Flat Suitable For Elevator Parts A4N59074
Electrical Parameters
Rated Voltage: Typically DC 12V or DC 24V (compatible with low-voltage DC power supplies commonly used in elevator control systems)
Rated Current: ≤100mA (low-power design to avoid excessive load on the control system)
Contact Type: Normally Open (continuous when pressed, triggering the elevator floor command signal)
Insulation Resistance: ≥100MΩ (at DC 500V, ensuring electrical safety)
Physical and Optical Parameters
Dimensions: Approximately 30-35mm in diameter (round design, compatible with standard elevator button panel mounting holes)
Illumination Color: Available in red, blue, orange, and white (LED light source, uniform brightness, clear indication)
Operating Lifespan: ≥1 million cycles (high durability, suitable for frequent presses)
Ingress Protection: IP40 (dust-proof, suitable for elevator cabin environments)
| Brand | SULAB |
| Description | Elevator parts |
| Model | A4N59074 |
| MOQ | 1PC |
| Transportion | TNT, UPS, DHL, Fedex, Air, Sea |
| Applicable | Elevator |
| Packages | Carton, Wooden case, Pallet etc |
| Delivery Time | Normally 2-3 working days after payment |
| Warranty | One year |
| Payment Method | Company Bank, Western union, alibaba, Paypal etc |
Installation and Adaptation
Installation Method: Panel flush mount (rear clip or screw fastening)
Compatible Brands: Primarily for elevator car or landing door call panels on brands such as Otis, Jiangnan Express, and Suzuki Hirohi.
Наши продукты продаются по всему миру, поэтому вы можете быть уверены в том, что производятся наши продукты в целом.
